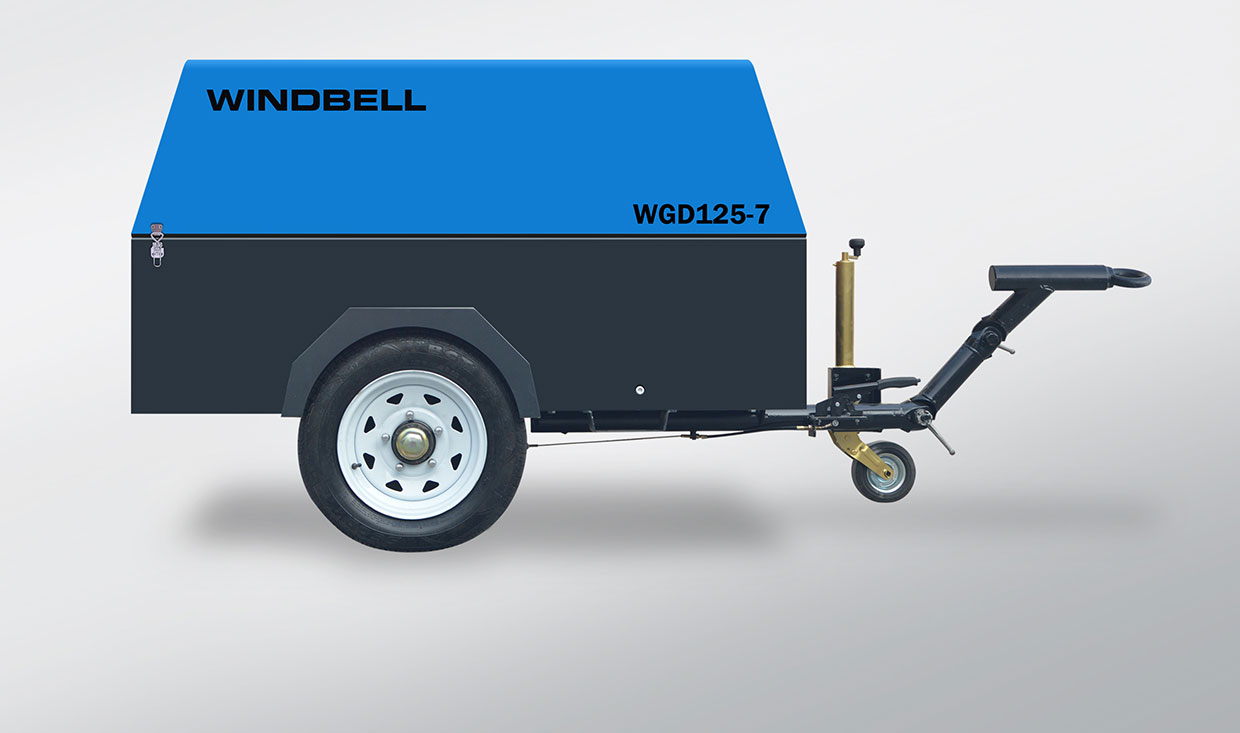

125 cfm Diesel Air Compressor

Model: WGD125
Capacity: 85-125 cfm
Working pressure: 7-10 bar
Motor power: 23kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

The WGD125 model air compressor is powered with one 23kW/30hp diesel engine which can produce compressed air of 85-125 cfm @ 7-10 bar pressure.
Both portable and skid version are available.

What are the benefits of WGD Diesel Air Compressor?

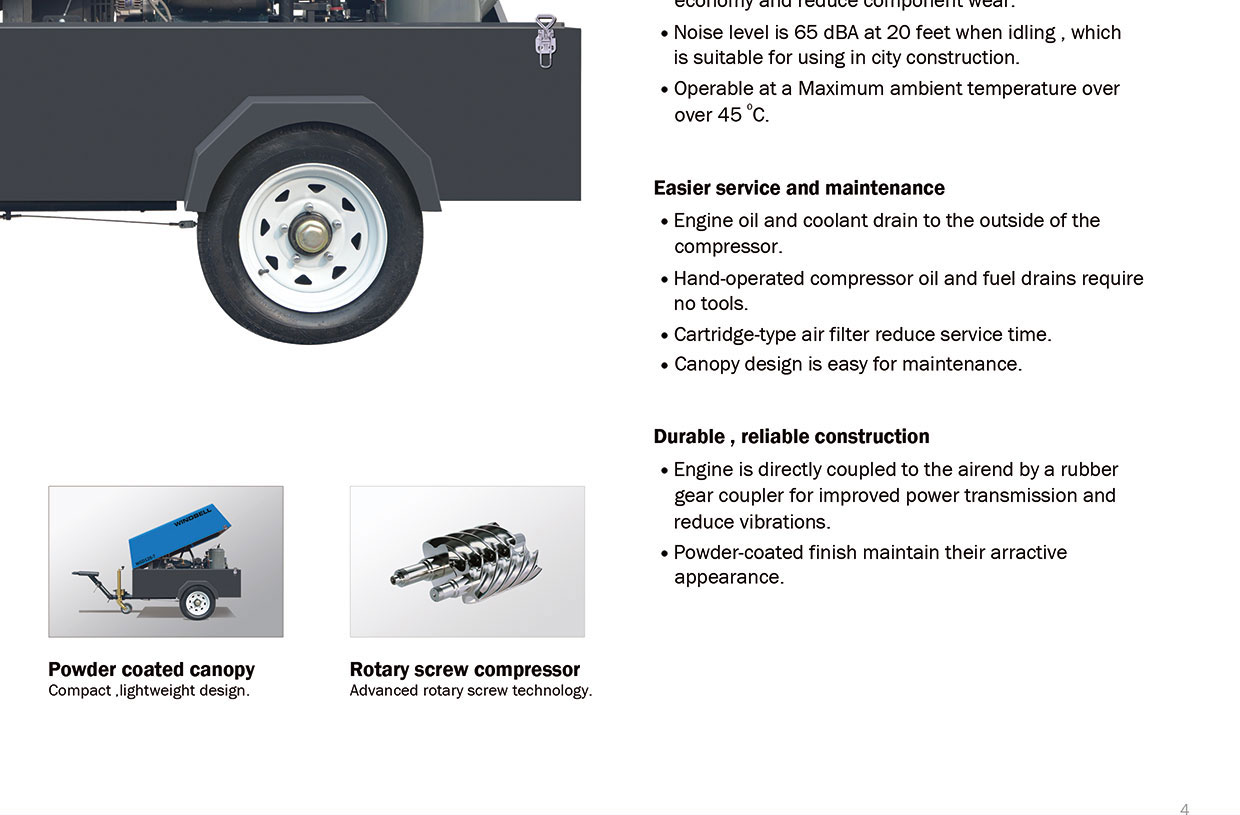

  • ● Quiet design: Engine idles as low as 850 RPM to increase fueleconomy and reduce component wear; Noise level is 65 dBA at 20 feet when idling , whichis suitable for using in city construction; Operable at a Maximum ambient temperature overover 45 'C.
  • ● Easier service and maintenance: Engine oil and coolant drain to the outside of thecompressor; Hand-operated compressor oil and fuel drains requireno tools; Canopy design is easy for maintenance.
  • ● Durable , reliable construction: Engine is directly coupled to the airend by a rubbergear coupler for improved power transmission andreduce vibrations.
Details

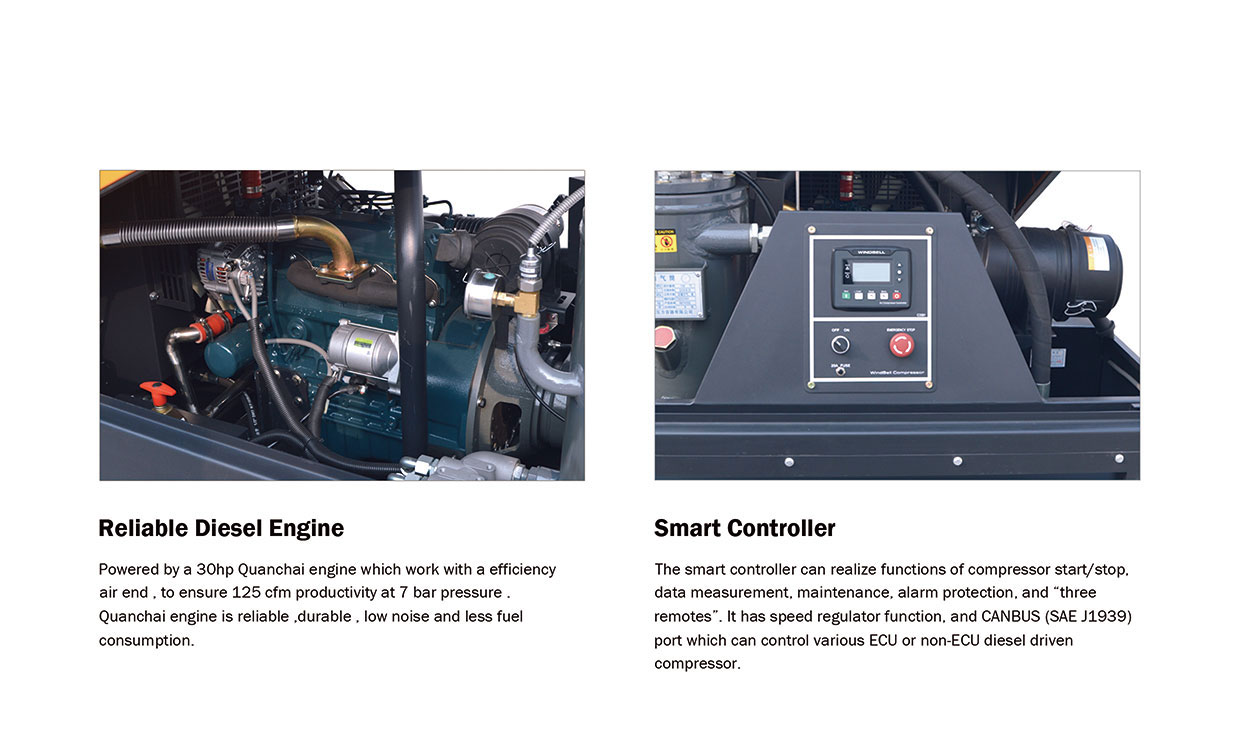

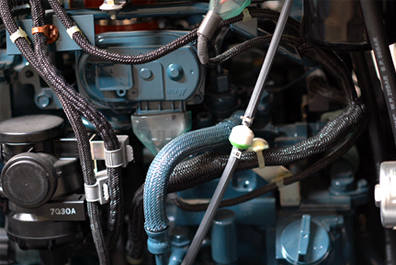

Reliable Diesel Engine

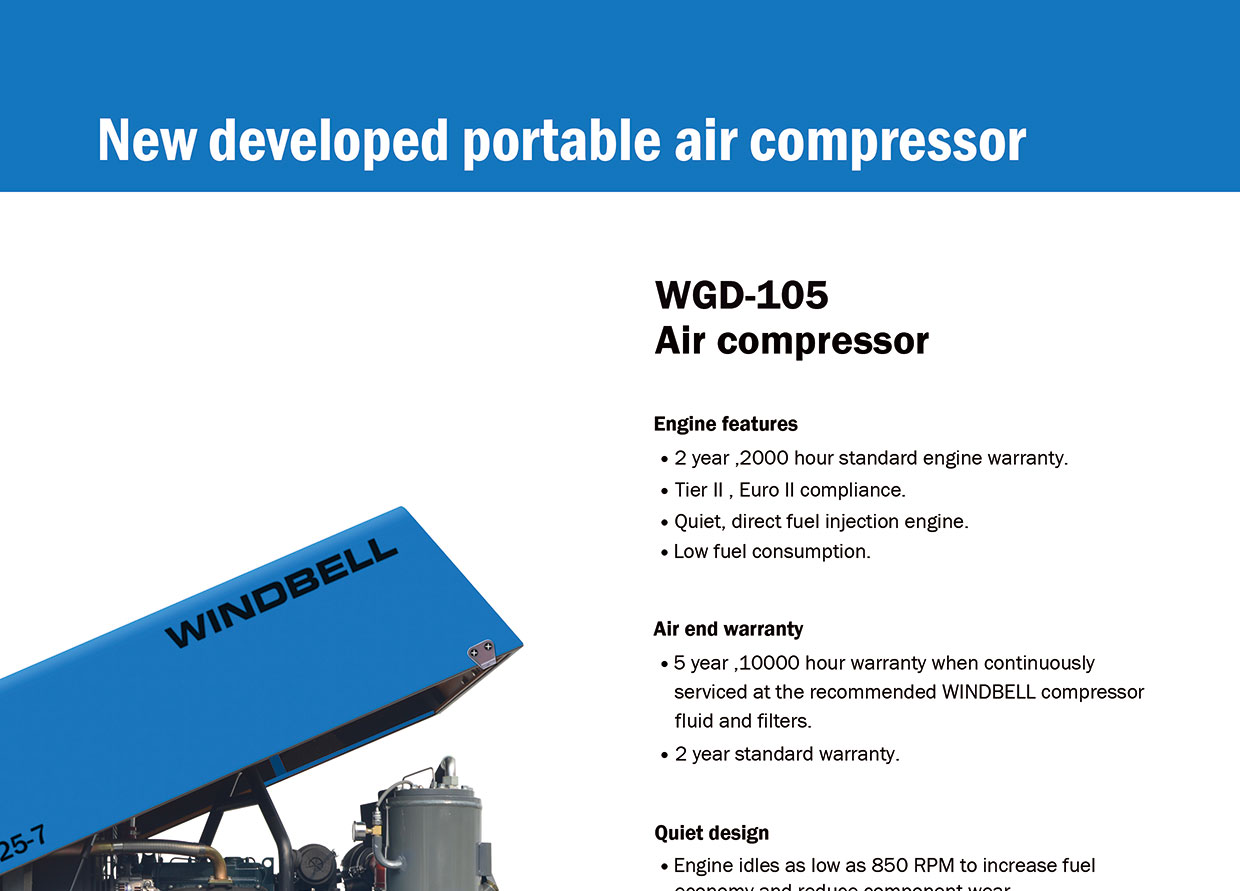

  • ● 2 year ,2000 hour standard engine warranty.
  • ● Tier ll , Euro ll compliance. Low fuel consumption.
  • ● Quiet, direct fuel injection engine.

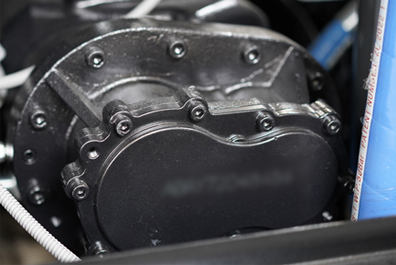

High Efficiency Airend

  • ● 5 year ,10000 hour warranty when continuouslyserviced at the recommended WNDBELL compressorfluid and filters.
  • ● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.

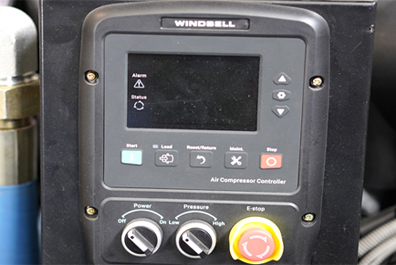

Smart Controller

  • ● Can realize functions of compressor start/stop.data measurement, maintenance, alarm protection, and "threeremotes".

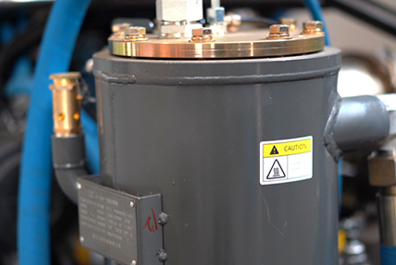

Oil Air Separator Tank

  • ● Low outlet temperature, ensuring long oil lifetime.
  • ● Large surface to ensure low operating temperature.

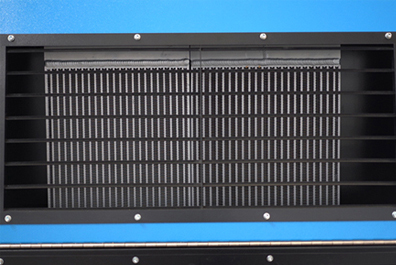

Cooling System

  • ● Ensuring Low Pressure Drop
  • ● Efficient separation, low oil content ( less than 3ppm ).

Oil-Water Separator

  • ● Ensuring Low Pressure Drop
  • ● Efficient separation, low oil content ( less than 3ppm ).
Filter System

Supporting real-time and cumulative power consumption measurement.
It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.
Highly integrated, reliable and cost-effective.

Oil Filter

Diesel&Engine Fuel Filter‌

Heavy duty Air Intake Filter

Specifications
Model
No.		 Free Air Delivery (cfm) Make Engine
Power		 Full Load
Speed		 Off load
Speed		 Fuel Tank
Capacity		 Weight Outlets Dimension (mm)
100  116  145  174
psi psi psi psi hp rpm rpm L kg L W H
WGD125
PORTABLE		 125  105  85  QUANCHAI 30 2900 2100 60 650 2×3/4" 2930 1540 1280
WGD125
SKID		 125  105  85  QUANCHAI 30 2900 2100 60 720 2×3/4" 1785 1100 1000
