35 cfm Petrol Air Compressor

Model: WGD35
Capacity: 28-35 cfm
Working pressure: 7-10 bar
Motor power: 7.5kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

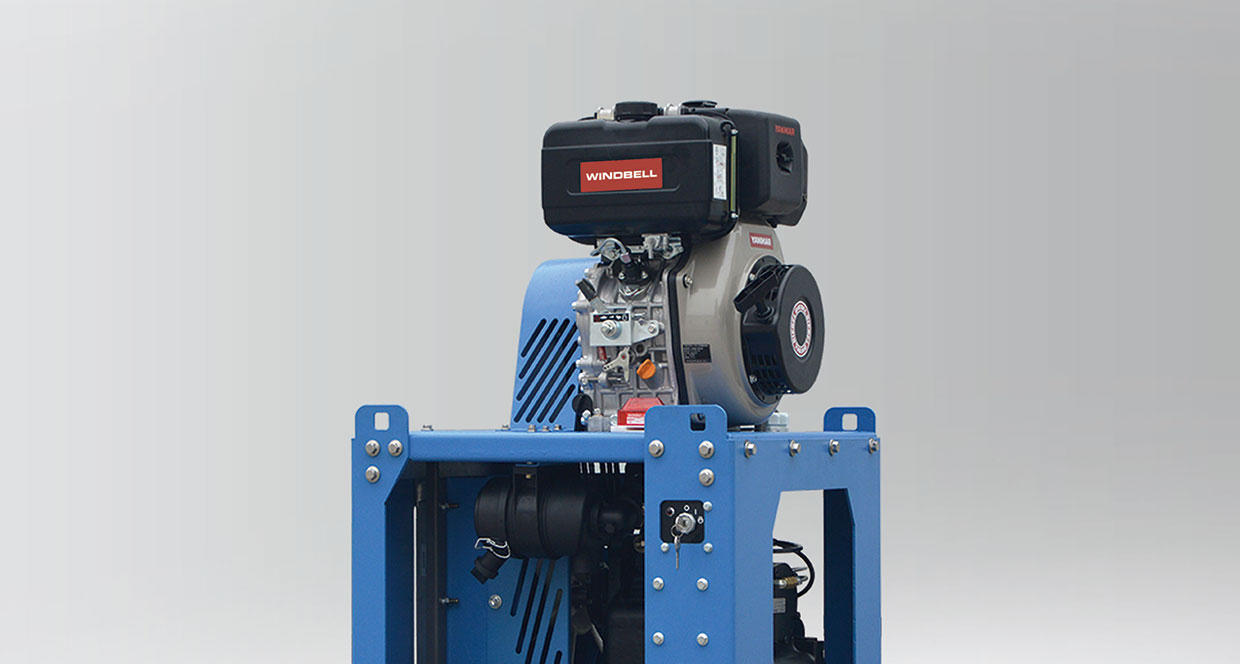

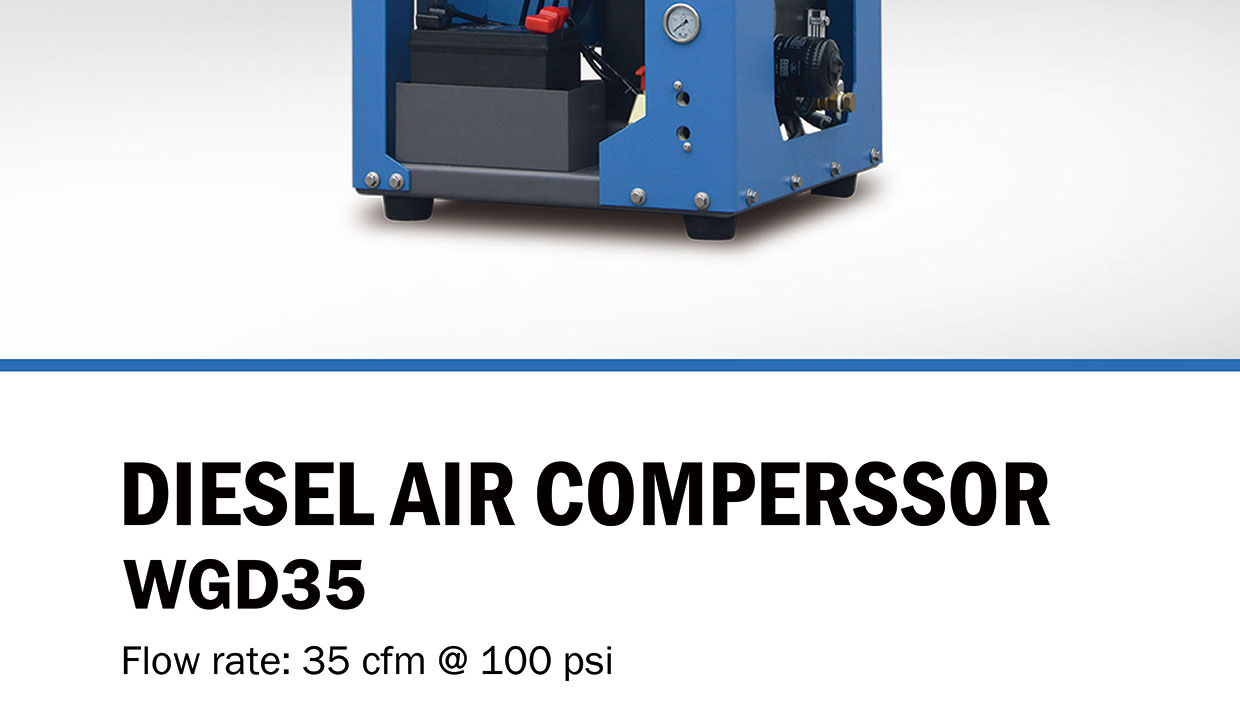

The WGD35 air compressor is powered with one 7.5kW/10hp petrol engine which can produce compressed air of 28-35 cfm @ 7-10 bar pressure.

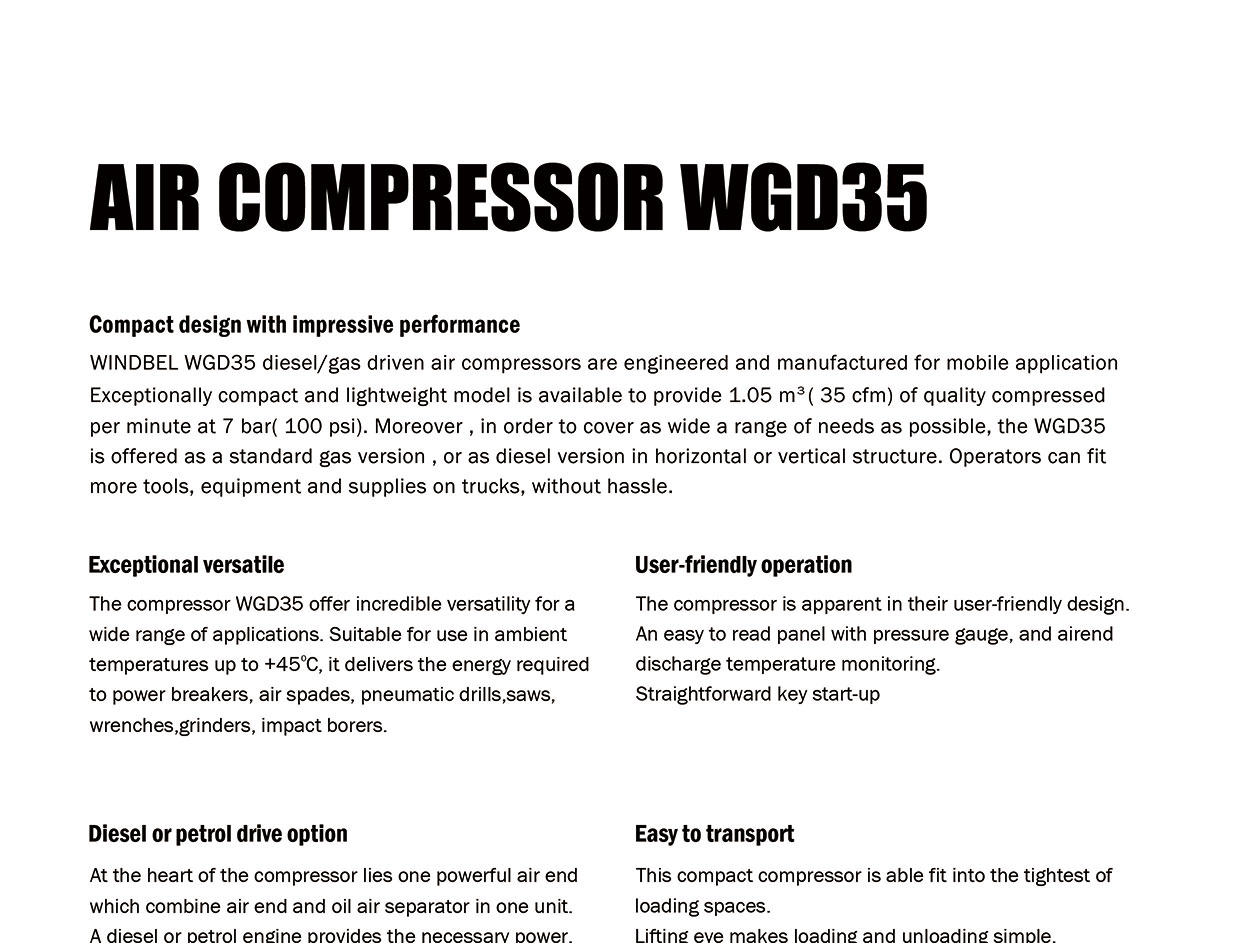

WINDBEL WGD35 diesel/gas driven air compressors are engineered and manufactured for mobile applicationExceptionally compact and lightweight model is available to provide 1.05 m°( 35 cfm) of quality compressedper minute at 7 bar( 100 psi). Moreover , in order to cover as wide a range of needs as possible, the WGD35is offered as a standard gas version , or as diesel version in horizontal or vertical structure. Operators can fitmore tools, equipment and supplies on trucks, without hassle.

What are the benefits of WGD Diesel Air Compressor?

  • ● Exceptional versatile: The compressor WGD35 offer incredible versatility for a wide range of applications. Suitable for use in ambient temperatures up to +45'C, it delivers the energy required to power reakers, air spades, pneumatic drills, saws.wrenches, grinders, impact borers.
  • ● Diesel or petrol drive option: At the heart of the compressor lies one powerful air end which combine air end and oil air separator in one unit. A diesel or petrol engine provides the necessary power.
  • ● User-friendly operation: The compressor is apparent in their user-friendly design. An easy to read panel with pressure gauge, and airend discharge temperature monitoring. Straightforward key start-up.
  • ● Easy to transport: This compact compressor is able fit into the tightest of loading spaces. Lifting eye makes loading and unloading simple.
Details

Compact and light weight design make it as the good choice for outdoor applications.

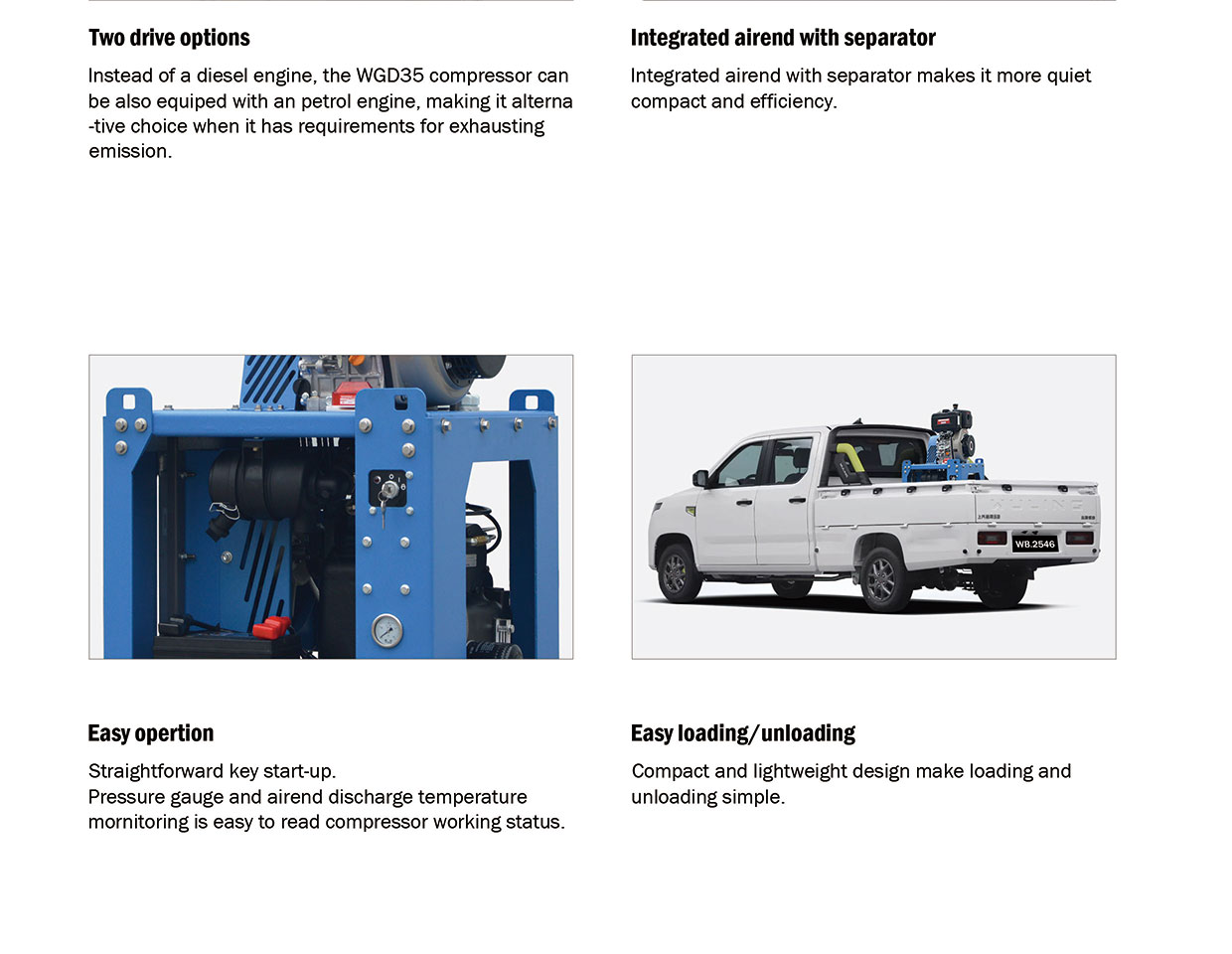

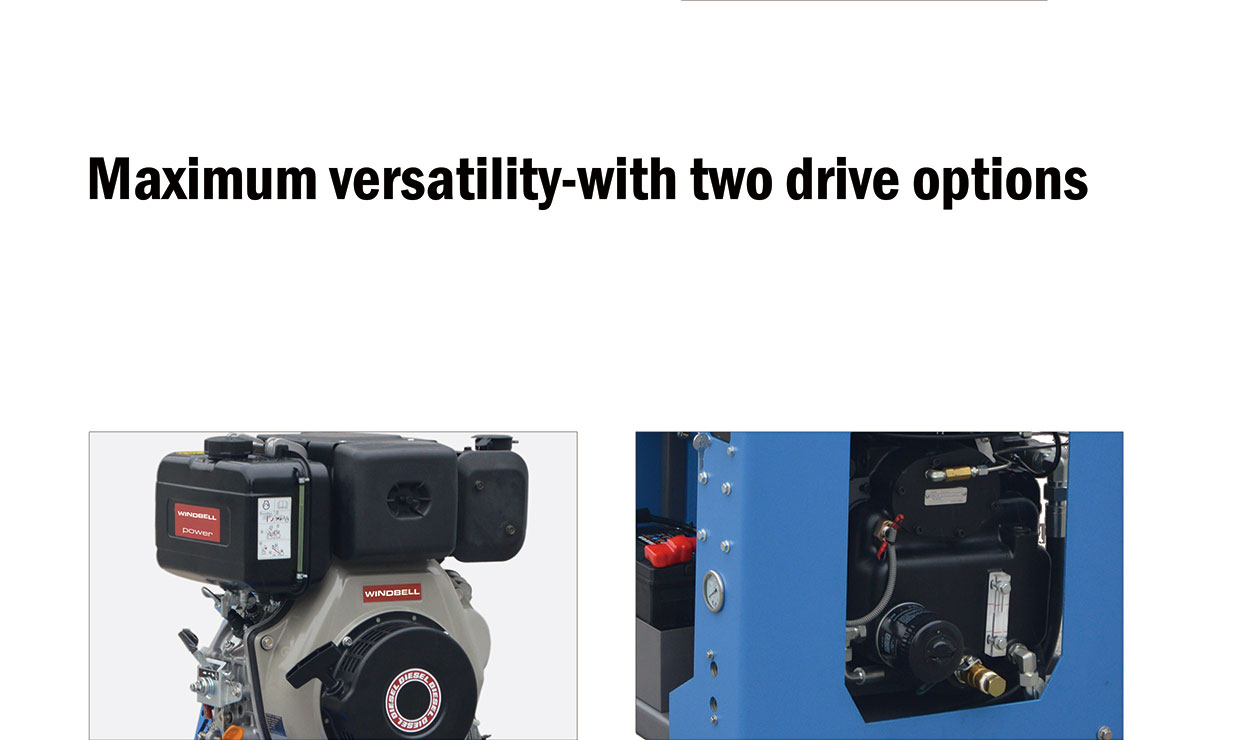

Two drive options

  • Instead of a diesel engine, the WGD35 compressor can be also equiped with an petrol engine, making it alternative choice when it has requirements for exhaustinge mission.

Integrated airend with separator

  • Integrated airend with separator makes it more quiet compact and efficiency.

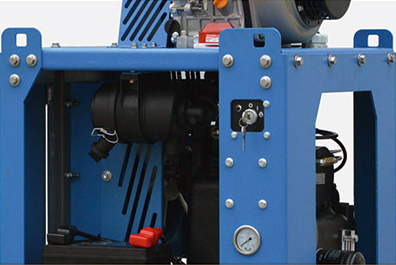

Easy opertion

  • Pressure gauge and airend discharge temperature mornitoring is easy to read compressor working status.

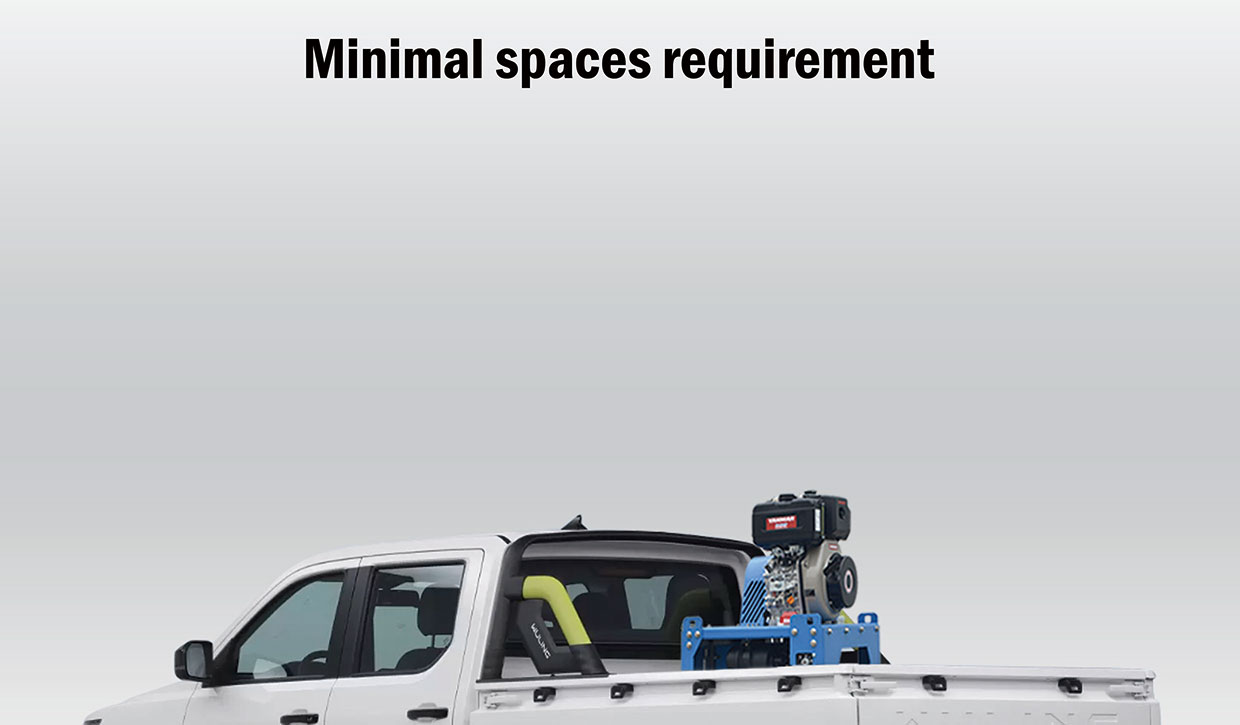

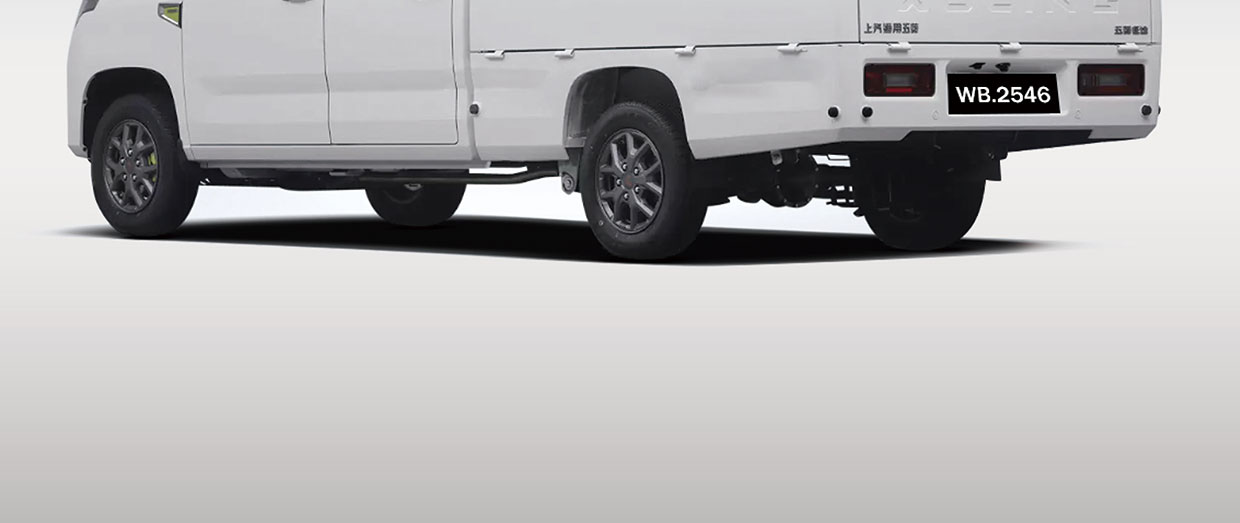

Easy loading/unloading

  • Compact and lightweight design make loading and unloading simple.
Specifications
Model
No.		 Free Air Delivery (cfm) Make Engine
Power		 Full Load
Speed		 Off load
Speed		 Fuel Tank
Capacity		 Weight Outlets Dimension (mm)
100  116  145  174
psi psi psi psi hp rpm rpm L kg L W H
WGD35 35  28  HONDA 10 3600 5.5 270 2×1/2" 682 640 1184
WGD125 125  105  85  QUANCHAI 30 2900 2100 60 650 2×3/4" 2930 1540 1280
