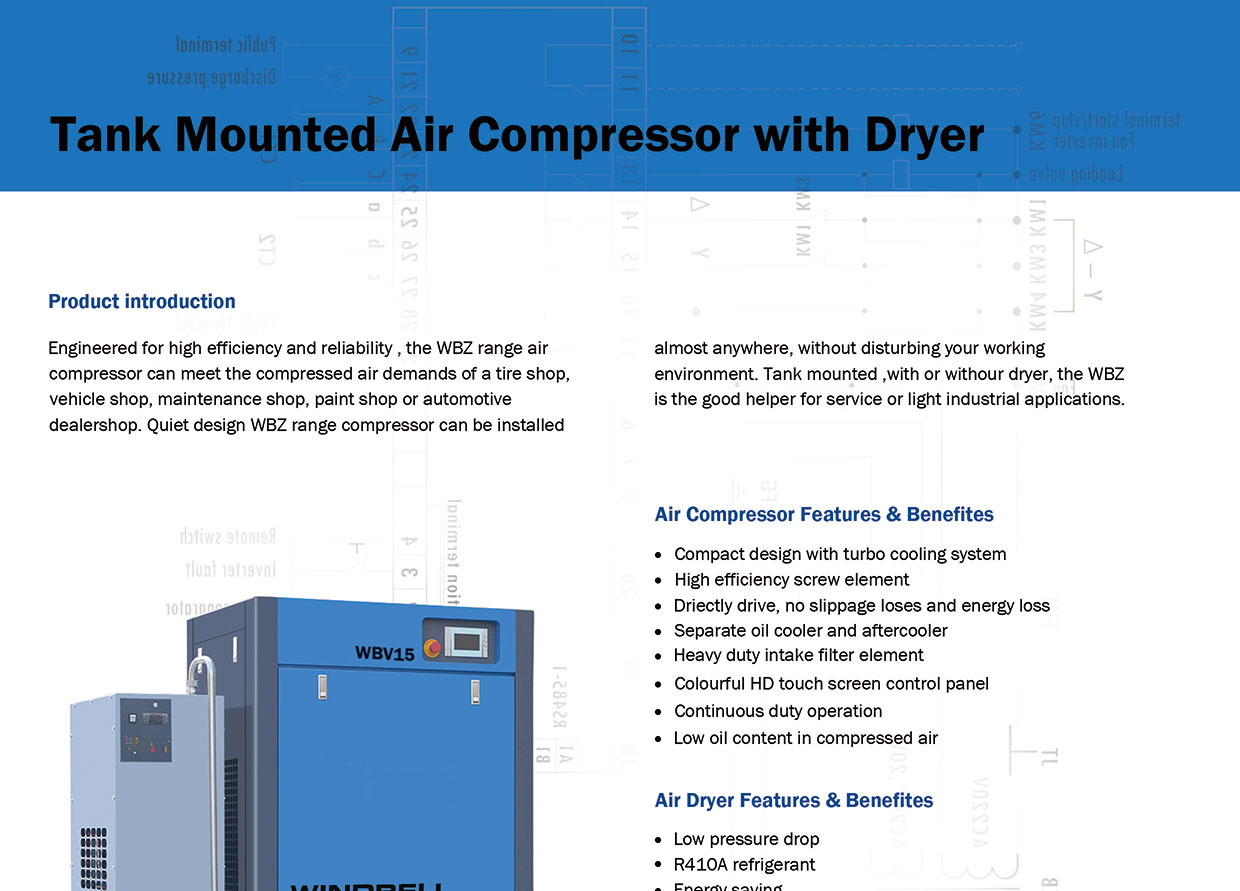

7.5-15 kW Tank Mounted Air Compressor With Dryer

Model: WZS7.5
Capacity: 0.8-1.2 m3/min
Working pressure: 7-15bar
Motor power: 7.5kW
Contact us Inquiry Now
Description Specifications Related Products
Contact
Description

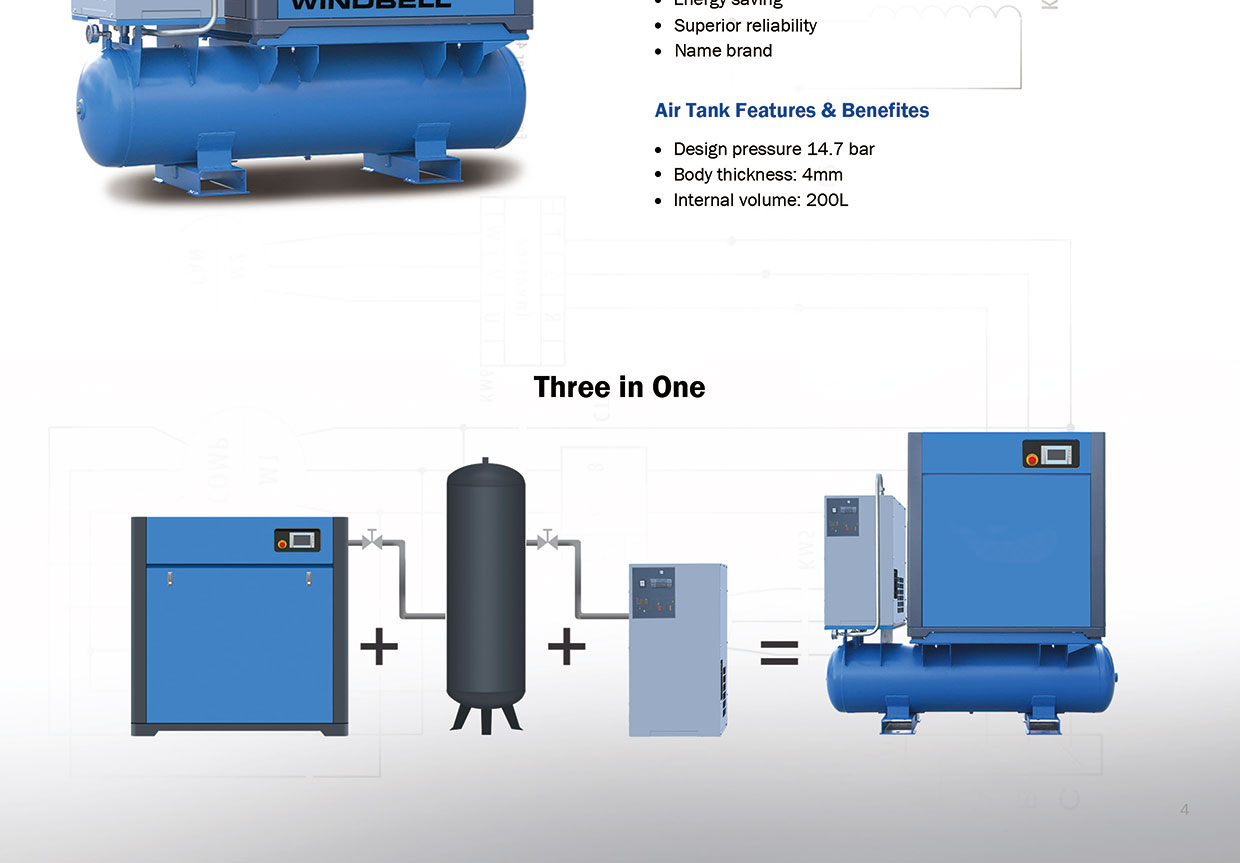

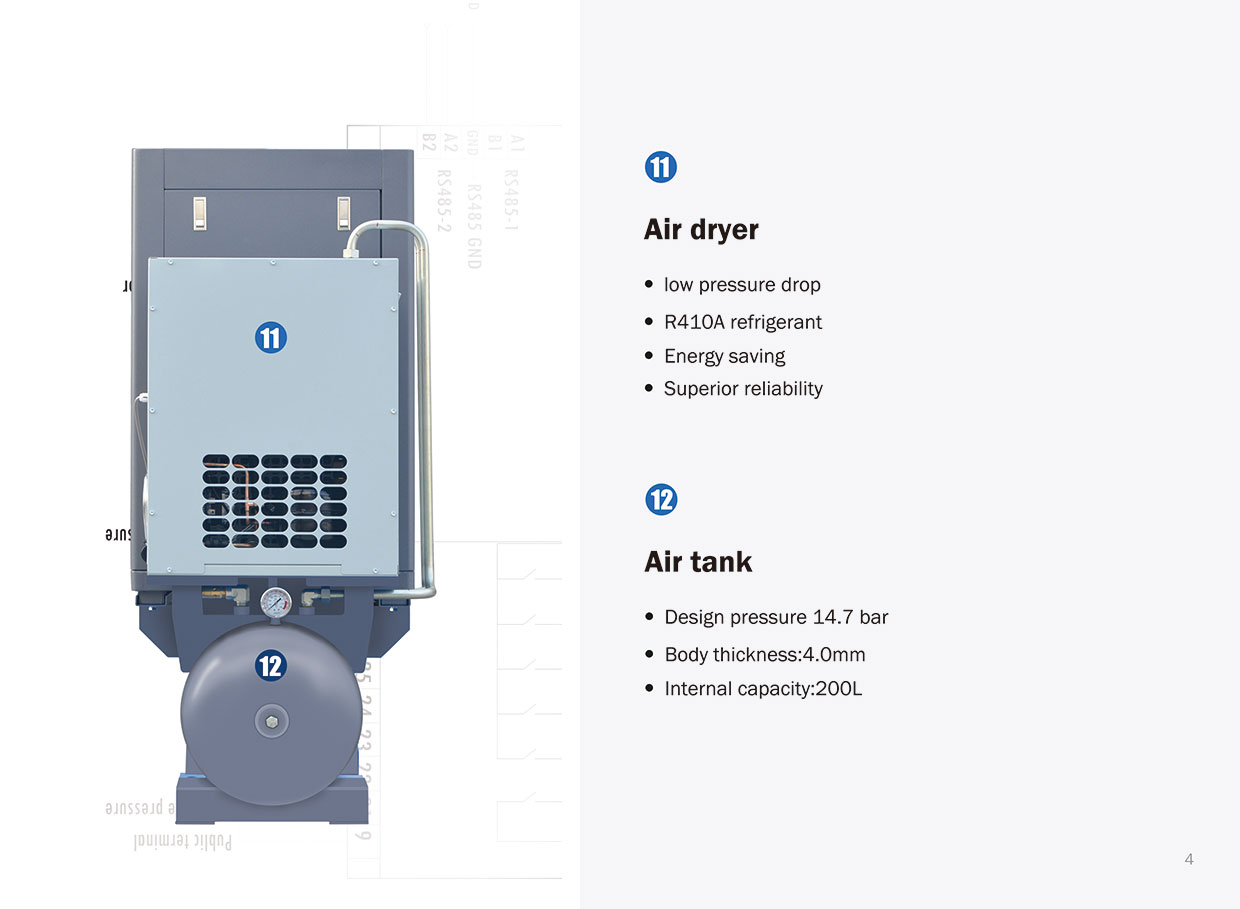

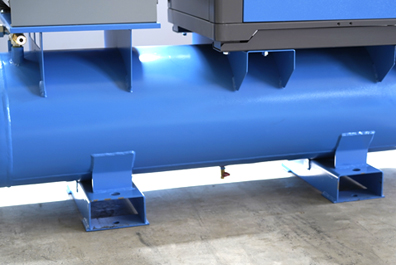

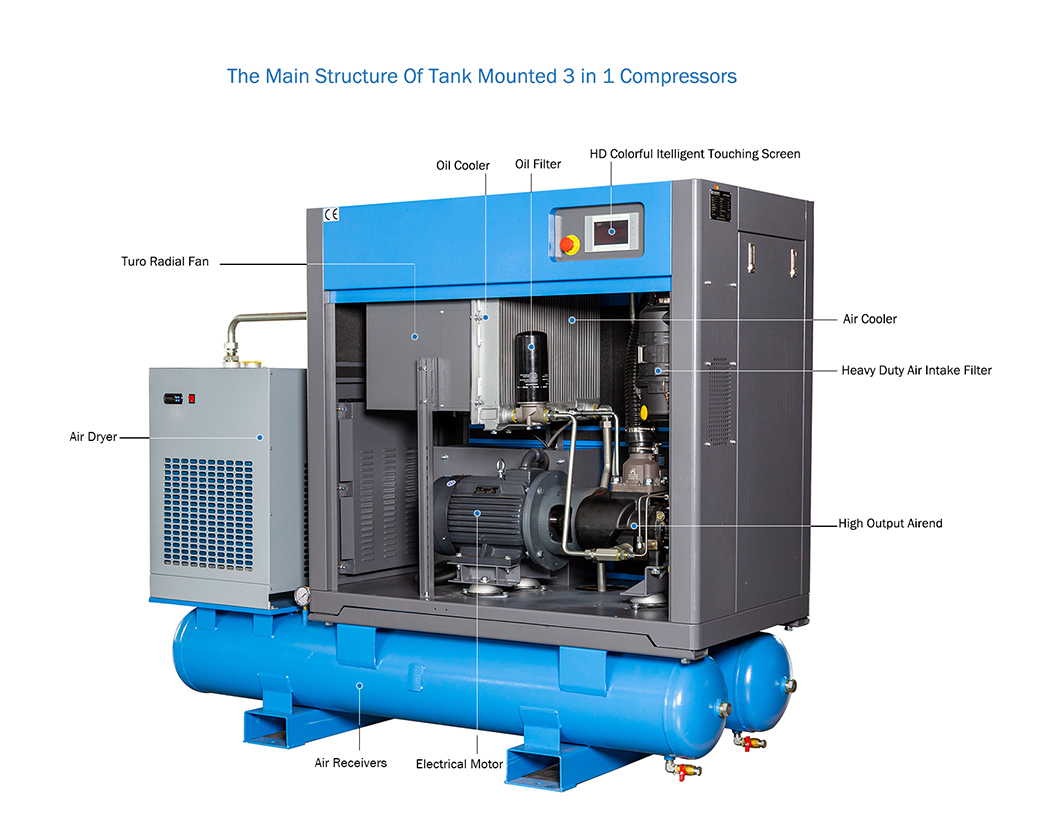

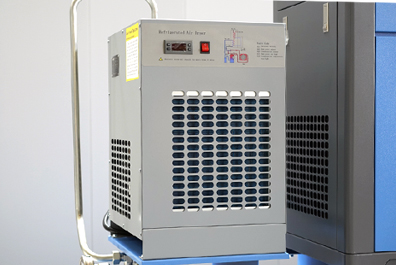

This compressor and dryer are mounted on one 200L tank , power available from 7.5-15kw ,direct driven.

Both fixed speed and variable speed type are available.

They are perfect solution for small business, workshops and operattions that don’t need compressed air very often.

Specifications
Model Working pressure  Capacity FAD Motor Power Tank Capacity Noise Level Oulet  Weight  Dimension (mm)
No. bar psi cfm m3/min hp kw L Db Diameter Kg L W H
WZS7.5 7 100 42 1.2  10 7.5  200 63+/-3 G3/4 450 1688 690 1643
8 116 39 1.1
10 145 35 1.0
12 174 28 0.8
WZS11 7 100 64 1.8  15 11  200 64+/-3 G3/4 500 1688 560 1428
8 116 57 1.6
10 145 53 1.5
12 174 46 1.3
13 189 42 1.2
WZS15 7 100 92 2.6  20 15  200 64+/-3 G3/4 550 1688 560 1428
8 116 85 2.4
10 145 74 2.1
12 174 64 1.8
16 232 46 1.3
WZS22 7 100 130 3.7  30 22  300 65+/-3 G1 950 2100 820 1700
8 116 124 3.5
10 145 110 3.1
12 174 95 2.7
16 232 85 2.4
