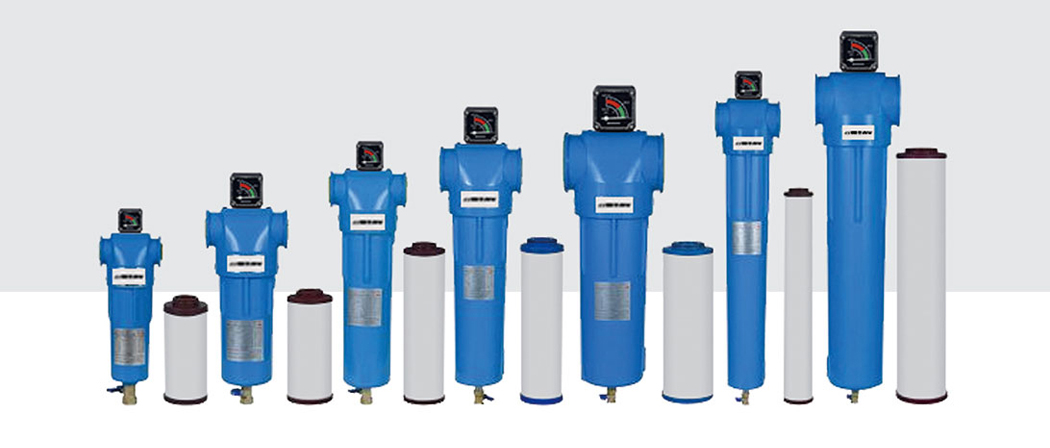

Compressed Air Filters

Model: WBF350
Capacity: 1.2-49.0 m3/min
Working pressure: 0-16 bar
Contact us Inquiry Now
Description Specifications Related Products
Contact
Description

An air filter protects your compressed air system and your investment. And there is none better than Atlas Copco’s SFA filters. These silicone-free air filters efficiently prevent dry and wet dust, particulates, oil aerosol and water droplets from entering your compressed air system. In the process, they ensure that you have access to a compressed air stream with a superb air purity.

Specifications
Model Flow Rate Connection Dimension (mm)
No. cfm m3/min inch A B C D
WBF0120 42  1.2  3/4 100 214 181 110
WBF0200 70  2.0  3/4 100 275 242 145
WBF0300 106  3.0  3/4 100 275 242 175
WBF0350 124  3.5  1 130 320 273 185
WBF0500 177  5.0  1.5 130 320 273 185
WBF0750 265  7.5  1.5 130 402 355 230
WBF1050 370  10.5  1.5 130 402 355 270
WBF1450 512  14.50  2 180 527 465 390
WBF2200 777  22.00  2 180 707 645 570
WBF2500 880  25 2.5 225 857 779 570
WBF3000 1059  30 2.5 225 857 779 630
WBF3500 1235  35 3 225 1007 929 700
WBF4500 1589  45 3 225 1007 929 700
WBF4900 1730  49 4 225 1007 929 700
WBFL2200 777  22 DN65 310 707 645 110
WBFL2500 880  25 DN65 360 857 779 570
WBFL3000 1059  30 DN80 360 857 779 630
WBFL3500 1236  35 DN100 360 1007 929 700
WBFL4500 1589  45 DN80 360 1007 929 700
WBFL4900 1730  49 DN100 360 1007 929 700
